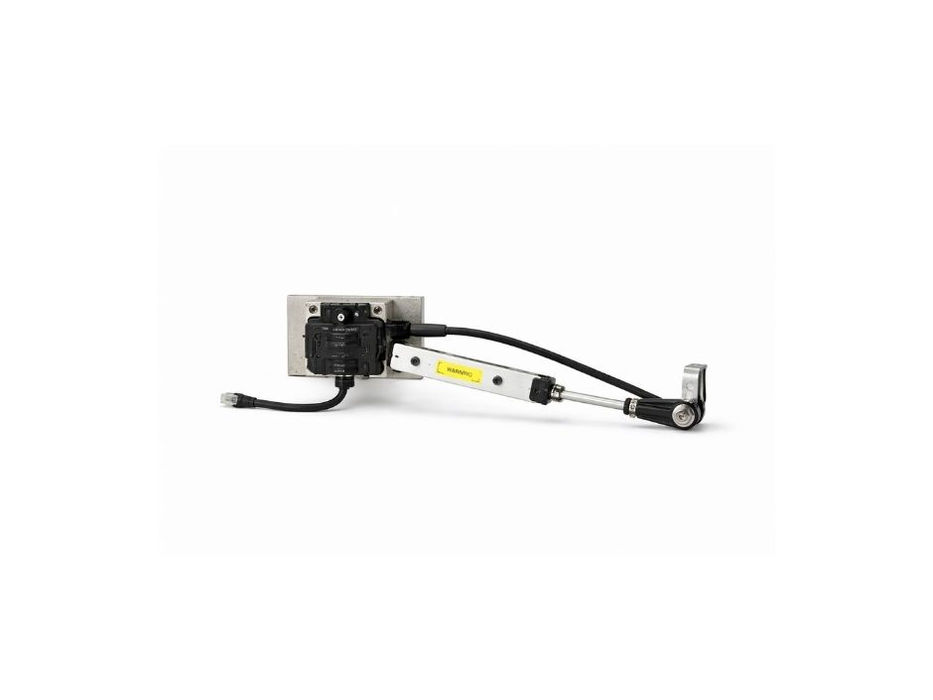

Starkenn LOAD
Spring Deflection–Based Load Monitoring System
Starkenn Load is a spring deflection–based load monitoring solution designed to prevent overloading during mining and heavy-duty operations. Engineered for stationary vehicles, it delivers accurate load measurement and real-time alerts, enabling safer loading practices and improved operational discipline in demanding site conditions.
Optimized for Commercial & Industrial Operations
Designed for rugged use across mining sites and heavy-duty operations, Starkenn Load delivers consistent performance in high-vibration, dust-prone environments, ensuring reliable load measurement and safer loading outcomes under demanding conditions.
Why Starkenn Load?
Prevents unsafe overloading and vehicle damage
Improves safety compliance and operational transparency
Reduces mechanical stress and unplanned maintenance
Delivers reliable performance in mining environments
Delivers reliable performance in mining environments
Technology At Glance
Power supply
8 – 36 V
Output
0.5 – 4.5 V / CAN / RS485
Accuracy
~80%
Range
0 – 120°
Enclosure material
PA66, GF35
Protection
IP67
Operating temperature
-40 °C to +85 °C
Storage temperature
-40 °C to +125 °C
Min / Max load capacity
0.3 T to 2 T
Sensor type
Leaf spring displacement measurement
Spring Deflection–Based Load Monitoring System
Built on spring deflection sensing and robust control logic, Starkenn Load delivers accurate measurement of vehicle load during stationary loading operations. The system detects overloading conditions in real time and provides clear alerts to support safe and disciplined loading practices.
Designed for seamless integration with Starkenn’s safety and fleet platforms, Starkenn Load helps reduce mechanical stress, prevent unsafe dispatch, and improve operational control across mining and heavy-duty environments.
.png)
Accurate load monitoring using spring deflection method.
Audio and visual alerts during unsafe loading conditions.
Accurate Loading & Unloading Event Tracking
IoT-Enabled Cloud Synchronization
